Model #:
OR30SCG6W1
Color:
Stainless Steel

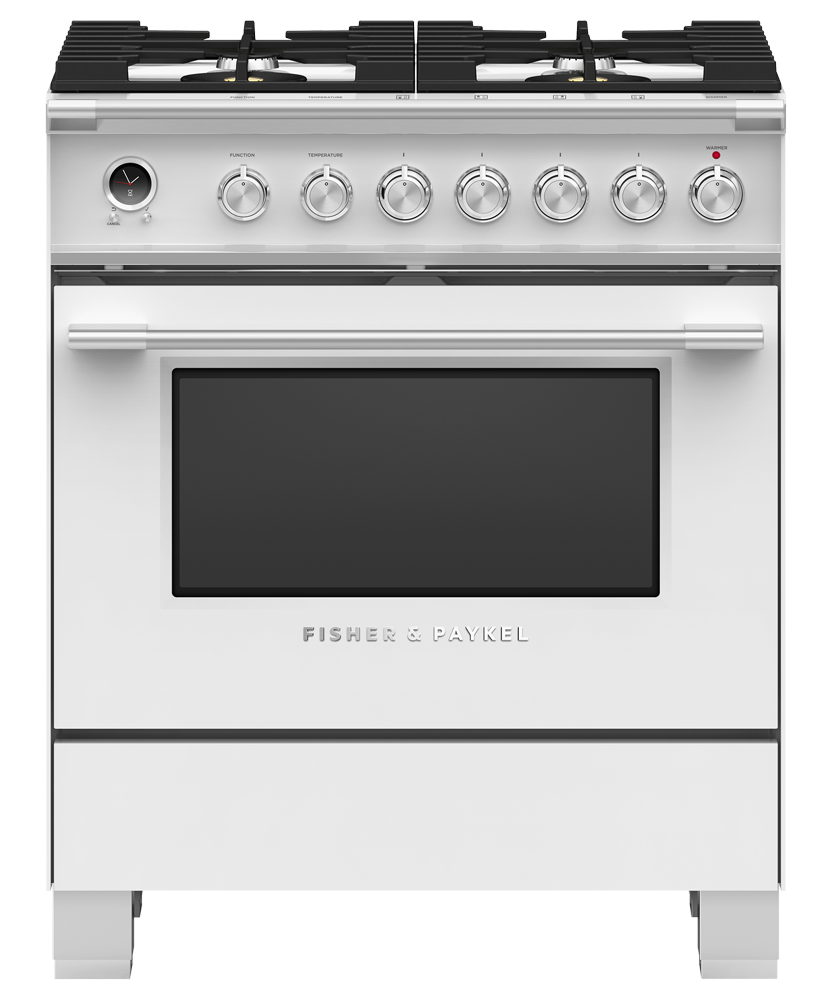

30" Series 9 Classic 4 Burner Dual Fuel Self-Cleaning Range
30" Series 9 Classic 4 Burner Dual Fuel Self-Cleaning Range
Dimensions
Height: 35 3/4 - 37 5/8"
Width: 29 7/8"
Depth: 25 1/4"
Color
Stainless Steel
Features
- Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
- Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop grates and glowing halo dials all add up to an exceptional, premium range.
- Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The self-clean function breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.
- Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
- The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.
- Accurate, electronically-controlled oven heat ensures a great result every time.
Product Description
Get the best of both worlds with dual fuel. A gas cooktop with wok burner is paired with a convection oven with 9 functions.
Rebates
Specification
| Accessories (included) | |
| 2-pc grill system (Broil pan and Grill rack) | true |
| Broil pan | true |
| Full extension telescopic shelves | 2 sets (part 578776) |
| Small pot support | 1 (part 533981 cast) |
| Accessories (sold separately) | |
| Hob rear trim | 3 1/8" (part 84656) |
| Kick strip, black (optional) | KICKOR30B1 |
| Kick strip, red (optional) | KICKOR30R1 |
| Kick strip, stainless steel (optional) | KICKOR90X1 |
| Kick strip, white (optional) | KICKOR30W1 |
| Burner ratings | |
| Dual wok burner inner/outer (LPG) | 1000 - 18000BTU |
| Dual wok burner inner/outer (natural gas) | 1000 - 18000BTU |
| Maximum burner power | 18000 BTU |
| Semi-rapid burner (LPG) | 1500 - 7600BTU |
| Semi-rapid burner (natural gas) | 1500 - 8000BTU |
| Total cooktop power | 52000 BTU |
| Capacity | |
| Shelf positions | 7 |
| Total capacity | 3.5cu ft |
| Usable capacity | 2.9cu ft |
| Cleaning | |
| Acid resistant graphite enamel | true |
| Drop down broil element | true |
| Drop down grill element | true |
| Flat easy clean glass surface | true |
| Pyrolytic proof shelf runners | true |
| Pyrolytic self-clean | true |
| Removable oven door | true |
| Removable shelf runners | true |
| Controls | |
| Audio feedback | true |
| Automatic cooking/minute timer | true |
| Automatic pre-set temperatures | true |
| Celsius/Fahrenheit temperature | true |
| Electronic clock | true |
| High resolution display | true |
| Laser etched graphics | true |
| Precise electronic temperature control | true |
| Sabbath mode | true |
| Turned stainless steel clock buttons | true |
| Gas requirements | |
| Supply Pressure (LPG) | 11" W.C.P |
| Supply Pressure (natural gas) | 4" W.C.P |
| Oven features | |
| AeroTech™ technology | true |
| Auto re-ignition system | true |
| Automatic rapid pre-heat | true |
| Bright chromed, cast zinc dials with illuminated halos | true |
| Concealed element | true |
| Electronic oven control | true |
| Full extension telescopic sliding shelves | true |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | true |
| True convection | true |
| Turned stainless steel clock dial | true |
| Oven functions | |
| Aero Bake | true |
| Aero™ Pastry with Pizza mode | true |
| Number of functions | 9 |
| Rapid proof | true |
| Roast | true |
| True convection | true |
| Oven performance | |
| Broil power | 4050W |
| CoolTouch door | Triple glazed |
| Warming drawer power | 220W |
| Power requirements | |
| Connection | 4-prong grounding type [NEMA 14-50P plug] |
| Power supply | 120 / 240 V or 120 / 208 V, 60 Hz |
| Service | 40 A |
| Product dimensions | |
| Depth | 25 1/4" |
| Height | 35 3/4 - 37 5/8" |
| Width | 29 7/8" |
| Rangetop features | |
| Brass burner spreader (power burner) | true |
| Embossed brass burner cap (power burner) | true |
| Hob rail | true |
| Hob rear trim | 3 1/8" (part 84656) |
| LPG/Natural gas compatible | true |
| Sealed range top | true |
| Rangetop Performance | |
| Number of burners | 4 |
| Safety | |
| ADA compliant | true |
| Advanced cooling system | true |
| Anti-tilt bracket | true |
| Balanced oven door | true |
| Catalytic venting system | true |
| Full extension telescopic sliding shelves | true |
| Non-tip shelves | true |
| Spill containment | 1/2 gallon |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
Get the best of both worlds with dual fuel. A gas cooktop with wok burner is paired with a convection oven with 9 functions.
