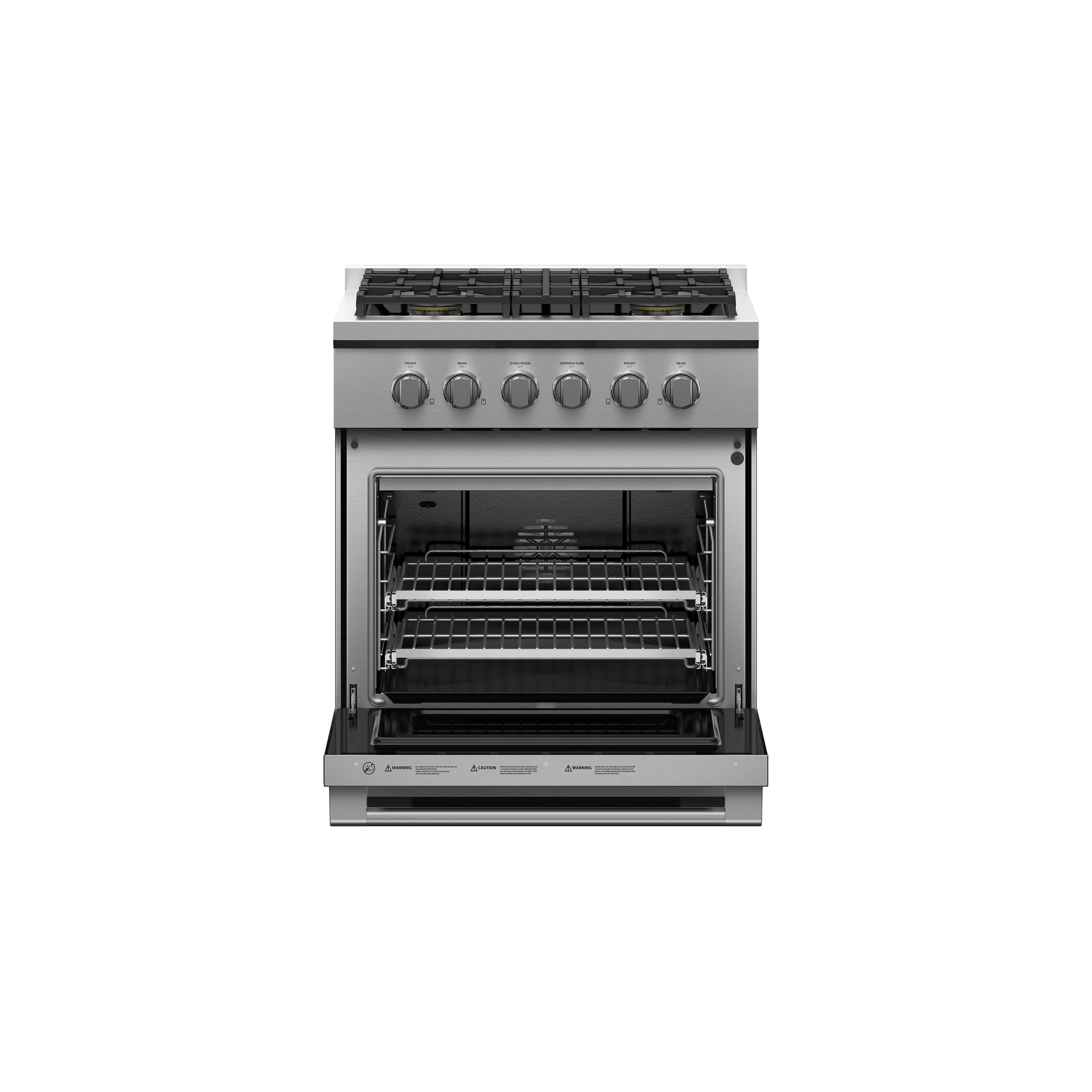

30" Series 7 Professional 4 Burner Gas Range, Natural Gas
30" Series 7 Professional 4 Burner Gas Range, Natural Gas
Available At...
Regional Distribution Warehouse
Low Stock, act fast!
Dimensions
Height: 35 3/4 - 36 3/4"
Width: 29 7/8"
Depth: 29 1/8"
Color
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, the Range is built to last.
- With a continuous, porcelain basepan, cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
Product Description
Professional style and performance, with high power burners delivering high heat or the most gentle simmer.
Rebates
Specification
Accessories (sold separately) | |
Square handle option | AH-R30 |
Burner ratings | |
Maximum burner power | 22500 BTU |
Power back left | 18500BTU |
Power back right | 18500BTU |
Power front left | 22500BTU |
Power front right | 18500BTU |
Total cooktop power | 78000 BTU |
Capacity | |
Shelf positions | 5 |
Total capacity | 4.6cu ft |
Usable capacity | 3.4cu ft |
Cleaning | |
Easy clean porcelain basepan | true |
Controls | |
Electric circuit | 3 wire |
Metal illuminated dials | true |
Gas requirements | |
Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
Supply Pressure (natural gas) | 6" to 9" W.C |
Oven features | |
Auto re-ignition system | true |
Broil pan | true |
Electronic oven control | true |
Full extension telescopic sliding shelves | true |
Infrared Broiler | true |
Internal light | true |
Titanium coated, illuminated metal dials | true |
Oven functions | |
Bake | true |
Broil | true |
Convection bake | true |
Number of functions | 4 |
Slow cook | true |
Oven performance | |
Bake power | 21,000 BTU |
Broil power | 18,500 BTU |
Power requirements | |
Power supply | 120 V, 60 Hz |
Service | 15 A |
Product dimensions | |
Depth | 29 1/8" |
Height | 35 3/4 - 36 3/4" |
Width | 29 7/8" |
Rangetop features | |
Sealed range top | true |
Vent trim included | true |
Recommended Back Guards Ventilation | |
Combustible situation | BGRV3-3030H |
Non combustible situation | BGRV2-3030 / BGRV2-1230 |
Recommended hood | HCB30-6_N (Professional Range Hood) |
Safety | |
ADA compliant | true |
Full extension telescopic sliding shelves | true |
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, the Range is built to last.
- With a continuous, porcelain basepan, cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
