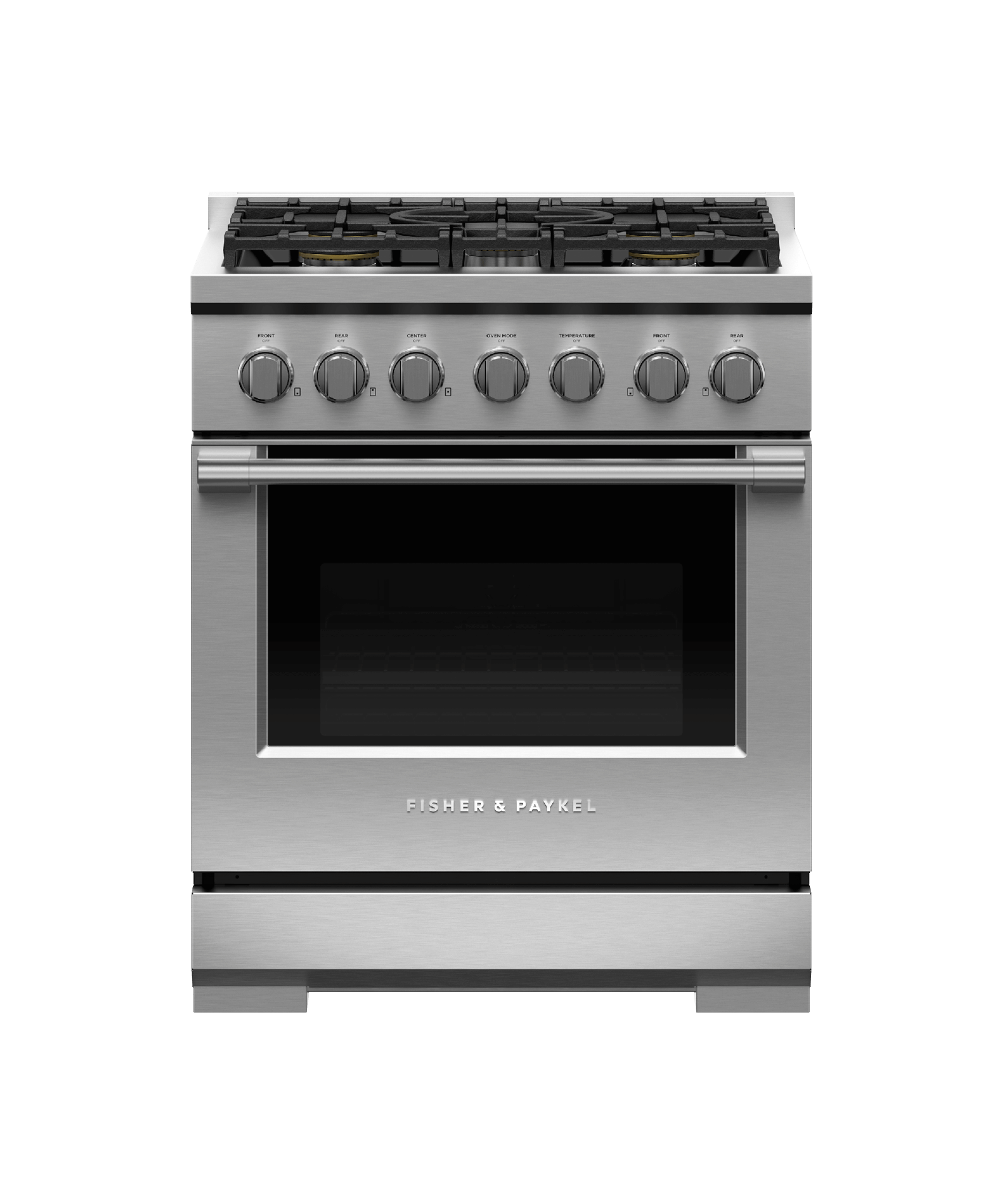

30" Series 7 Professional 5 Burner Gas Range, LPG
30" Series 7 Professional 5 Burner Gas Range, LPG
Dimensions
Height: 35 3/4 - 36 3/4"
Width: 29 7/8"
Depth: 29 1/8"
Color
Related Items...
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 17,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, the Range is built to last.
- With a continuous, porcelain basepan, cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
Product Description
Professional style and performance, with high power burners delivering high heat or the most gentle simmer.
Rebates
Specification
| Accessories (sold separately) | |
| Square handle option | AH-R30 |
| Burner ratings | |
| Maximum burner power | 17000 BTU |
| Power back left | 11500BTU |
| Power back right | 11500BTU |
| Power centre | 17000BTU |
| Power front left | 15000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 70000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Total capacity | 4.6cu ft |
| Usable capacity | 3.4cu ft |
| Cleaning | |
| Easy clean porcelain basepan | true |
| Controls | |
| Electric circuit | 3 wire |
| Metal illuminated dials | true |
| Gas requirements | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (LPG) | 11" to 14" W.C |
| Oven features | |
| Auto re-ignition system | true |
| Broil pan | true |
| Electronic oven control | true |
| Full extension telescopic sliding shelves | true |
| Infrared Broiler | true |
| Internal light | true |
| Titanium coated, illuminated metal dials | true |
| Oven functions | |
| Bake | true |
| Broil | true |
| Convection bake | true |
| Number of functions | 4 |
| Slow cook | true |
| Oven performance | |
| Bake power | 21,500 BTU |
| Broil power | 19,000 BTU |
| Power requirements | |
| Power supply | 120 V, 60 Hz |
| Service | 15 A |
| Product dimensions | |
| Depth | 29 1/8" |
| Height | 35 3/4 - 36 3/4" |
| Width | 29 7/8" |
| Rangetop features | |
| Sealed range top | true |
| Vent trim included | true |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV3-3030H |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
| Safety | |
| ADA compliant | true |
| Full extension telescopic sliding shelves | true |
