Model #:
RS2474BRU1
Color:
Panel Ready

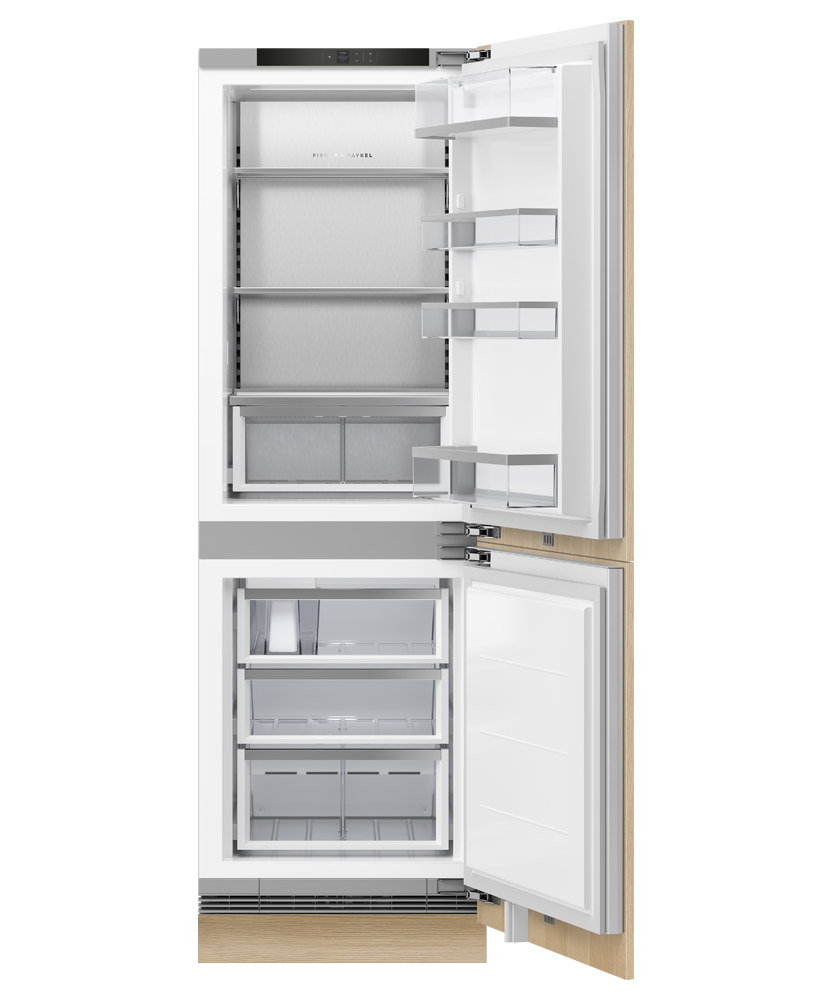

24" Series 9 Integrated Refrigerator Freezer, Ice & Water
24" Series 9 Integrated Refrigerator Freezer, Ice & Water
Dimensions
Height: 73 5/8"
Width: 23 5/16"
Depth: 22 11/16"
Color
Panel Ready
-2019-08-31-21-15-06.jpg "Fisher and Paykel Refrigerator Water Filter")
Features
- These models fit flush, with only 3/16" gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
- Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The slimline water dispenser is flush fit in order to maximize internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
- These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
- ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
- Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer.
- Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.
- Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the door is family safe with a soft-close mechanism.
Product Description
A slim profile, perfect for compact kitchens, or pair with other Integrated models for generous chilled and frozen storage.
Rebates
Specification
| Accessories (included) | |
| Hinge change (from right hinge to left hinge) | true |
| Accessories (sold separately) | |
| Door panel set stainless steel | Right hinge RD2474BR, Left hinge RD2474BL |
| Handle kit Classic | AHCLRDB |
| Handle kit Contemporary round, aluminium | AHSRDB74 |
| Handle kit Contemporary square fine, aluminium | AHD5RDB74 |
| Handle kit Contemporary square fine, black | AHD5RDB74B |
| Handle kit Professional round flush | AHP3RDB74 |
| Joiner kit | AJRS74LR |
| Toe kick stainless steel 23" | AKRS2304 |
| Toe kick stainless steel 47" | AKRS4704 |
| Toe kick stainless steel 71" | AKRS7104 |
| Capacity | |
| Volume | 10.7cu ft |
| Volume freezer | 4.3cu ft |
| Volume refrigerator | 6.4cu ft |
| Consumption | |
| Energy rating | Energy star Most efficient |
| Energy usage | 382kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered shelves | true |
| Covered door shelves | 1 |
| Door alarm | true |
| Internal water dispenser | true |
| LED bin lighting | true |
| LED ceiling lighting | true |
| LED lighting | true |
| LED side lighting | true |
| Smart Appliance | true |
| SmartTouch control panel | true |
| Stackable bottle holders | 2 |
| Water tank capacity | 30.7oz |
| Freezer features | |
| Automatic ice maker | true |
| Bottle chill | true |
| Door alarm | true |
| Fast freeze | true |
| Freezer bins | 3 |
| Ice Boost | true |
| Ice making rate per day | 2.2lbs |
| LED bin lighting | true |
| LED ceiling lighting | true |
| LED side lighting | true |
| Installation Dimensions | |
| Minimum inside width of cabinetry frame | 23 5/8" |
| Minimum internal depth of cabinetry | 24" |
| Minimum internal height of cabinetry | 74" |
| Performance | |
| ActiveSmart™ Foodcare | true |
| Adaptive defrost | true |
| Dual evaporator | true |
| Frost free | true |
| Humidity control system | true |
| Inverter controlled compressor | true |
| Sabbath mode | true |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 22 11/16" |
| Height | 73 5/8" |
| Width | 23 5/16" |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
A slim profile, perfect for compact kitchens, or pair with other Integrated models for generous chilled and frozen storage.
Features
- These models fit flush, with only 3/16" gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
- Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The slimline water dispenser is flush fit in order to maximize internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
- These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
- ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
- Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer.
- Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.
- Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the door is family safe with a soft-close mechanism.
