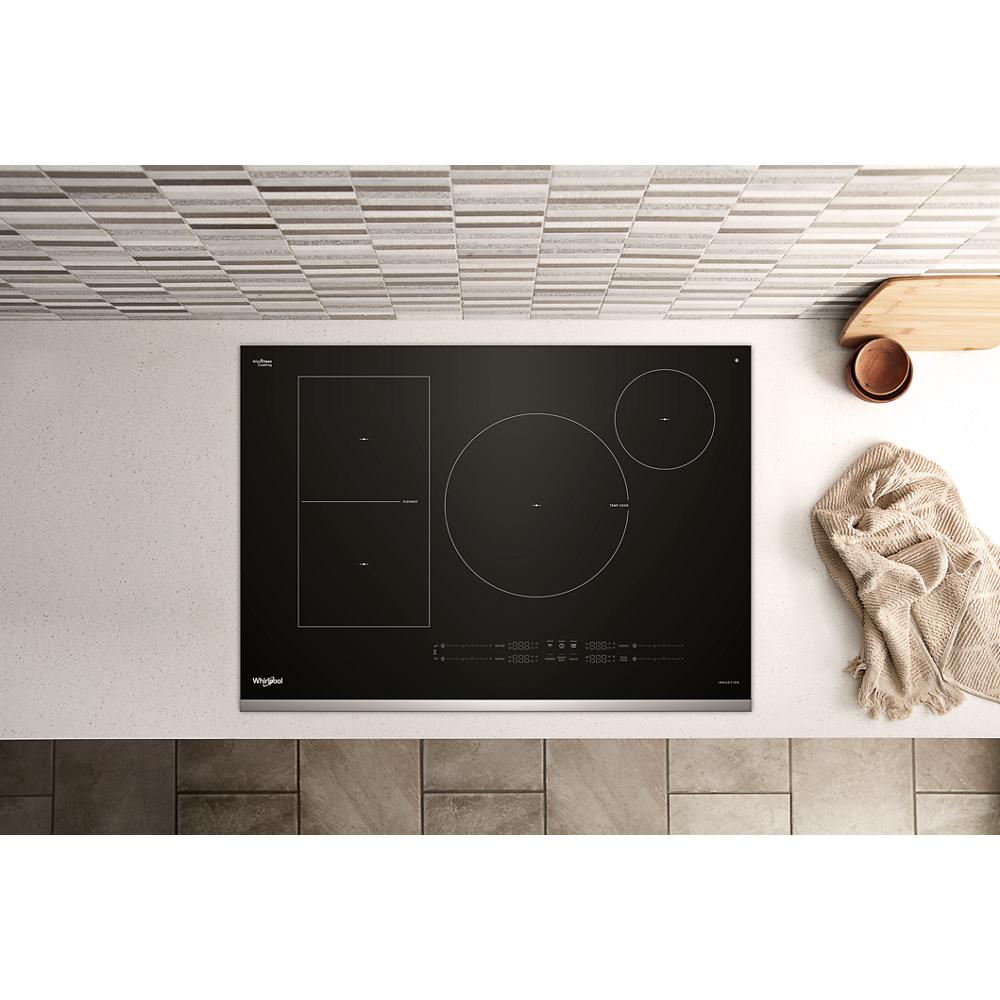

30" Intelligent Induction Cooktop with Temp Cook™ Technology and WipeClean™ Coating

Temp Cook™ Induction Technology

• The Temp Cook™ Induction Technology helps you avoid burning with dual temperature sensors that monitor and maintain your heat.

Smart Presets

• Simplify mealtime with Smart Presets that automatically set the the right temp to saute, simmer, fry and more.

Flexheat™ Plus Element

• Think big, small and most sizes in between with the Flexheat™Plus Element, a large, rectangular cooking space with pan size detection that only heats the space you need, giving you the flexibility to cook with different size pots and pans.

WipeClean™ Coating

• Skip scraping & intense scrubbing of baked-on foods with WIpeClean™ Coating, the easiest-to-clean induction cooktop coating.* Simply wet with water, wait, and wipe away. *When compared with cooktops with same heating technology with similar wattages.

Voice Control

• Use your voice to set your cooktop to specific cooking modes like Simmer, Fry, and more with Alexa™ or Google™ *. *When connected. Wifi and app required. See Whirlpool.com/connect for details. Alexa® is a trademark of Amazon.com, Inc. of its affiliates

Griddle Zone

• Maximize your cooking space for a variety of mealtime options with Griddle Zone. Two individual heating elements combine to form one larger one, making it easy to cook up all that delights, all at once.

Fast Boil

• Boil 2x times faster than electric cooktops with Fast Boil.* *using power boost and compared to WCE77US6H

Cookware Ready

• Don’t worry about buying new cookware. The Induction cooktop is compatible with most induction capable pots & pans, so upgrading to induction is as simple as using it.

18 Cooking power levels

• 18 power levels help give you precise control over your heat.

Smart Feature Updates

• Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

ENERGY STAR Certified

• ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.

Pan Detection

• Pan detection makes sure you only heat the space you need by senseing when a pan is placed on an active burner and automatically directing heat to it.

Wall Oven Compatible

• Install this cooktop above select Whirlpool® Single Wall Ovens to keep your kitchen and cooking space compact or place it on its own for more flexibility.*

Touch Controls

• Seemless touch controls appear while you use the but fade into the cooktop when turned off. Individual controls for each cooking zone provide quick access to TempCook™, Smart Presets and 18 manual power levels, keeping control of your cooktop at your fingertips

Certifications
ADA Compliant	No
CEC Listed	No
UL	Yes
Prop65	Standard

Controls
Control Location	Front
Control Type	Electronic Touch
Infinite Heat Controls	No

Cooktop Details
Cooktop Surface Material	Glass with WipeClean™ Coating
Digital Display	Yes
Griddle Included	Optional Accessory
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Ignition Type	N/A

Details
Automatic Pan Detection	Yes
Automatic Pan Size Adjustment	Yes
Cooktop Configuration	All Burners
Cooktop Selections	Control Lock; FlexHeat™ Zone; Keep Warm Setting; Melt; Pan Fry; Power Boost; Saute; Sear; Simmer; Smart Boil; Temp Cook™
Fuel Type	Electric Induction
Installs Over Built-In Oven	Yes
True Flush Installation	Yes

Dimensions
Cutout Depth	19.6
Cutout Depth Max	19.6
Cutout Width	28.5
Cutout Width Max	28.5
Carton Depth	25.5 inches
Carton Height	8.5 inches
Carton Width	34.88 inches
Gross Weight	48.3 pounds
Net Weight	45.1 pounds

Electrical
208V Compatible	Yes

Element/Burner Details
Cooktop Element Style	Induction
Cooktop Type	Standard
Left Front Element-Burner Power	2500/3700 watt (Boost)
Left Front Element-Burner Size	7 1/2" Bridge
Left Front Element-Burner Type	Bridge
Left Rear Element-Burner Power	2500/3700 watt (Boost)
Left Rear Element-Burner Size	7 1/2" Bridge
Left Rear Element-Burner Type	Bridge
Number Of Cooking Element-Burners	4
Power Boost	Yes
Right Front Element-Burner Power	2600/3700 watt (Boost)
Right Front Element-Burner Size	11in.
Right Front Element-Burner Type	Temp Cook™
Right Rear Element-Burner Power	1500/2200 watt (Boost)
Right Rear Element-Burner Size	6in.
Right Rear Element-Burner Type	Round

Smart Compatibility
Connectivity	Amazon Alexa; Android; Google Assistant; iOS
Works With	App; Bluetooth; Remote Access; Voice Controlled; WiFi

Ventilation Details
Downdraft Vent	No
